Interlink side curtain trailers are also called superlink curtain side trailer, which are very similar in appearance and structure to ordinary van trailers, but the materials around the box and the internal structure are different.
Interlink side curtain trailers are also called superlink curtain side trailer, which are very similar in appearance and structure to ordinary van trailers, but the materials around the box and the internal structure are different. Material, with guide rails on the top and locking devices on the bottom, the curtain side super b trailers for sale can be pushed to any position for loading and unloading, that is to say, the sides can be fully opened.
On the inner side of the tarpaulin, there are mobile columns + cross bars, which can be moved up and down at will, and can be locked and fixed when moved to a suitable position. It is similar to the role of the skeleton. If the tarpaulins on both sides are removed, it looks like a cargo semi trailer.

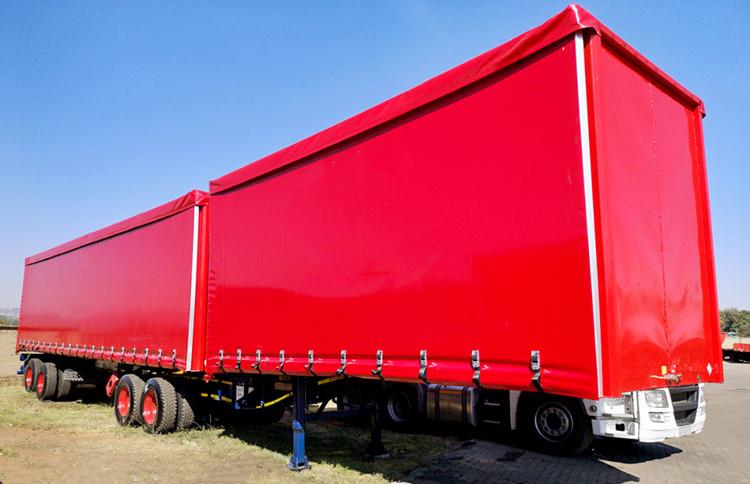

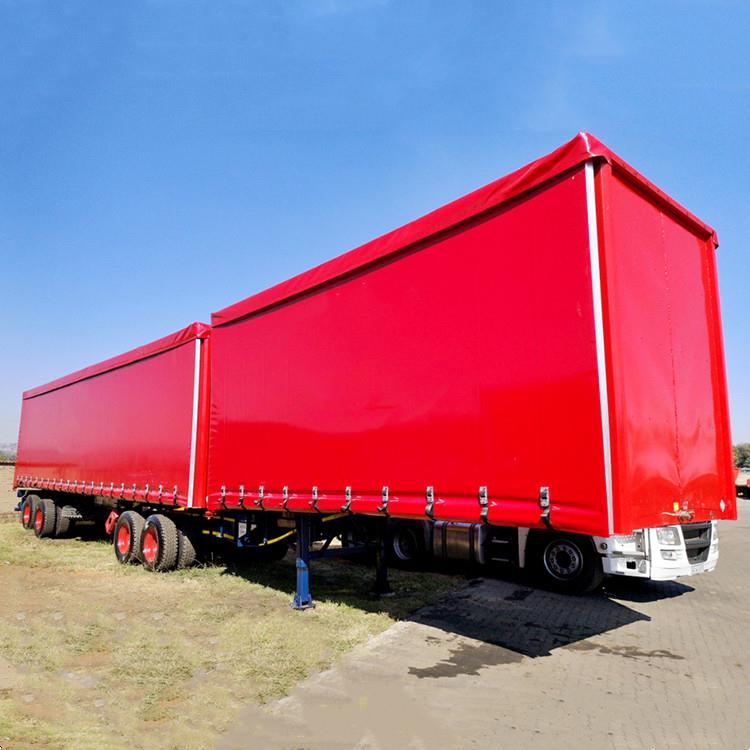

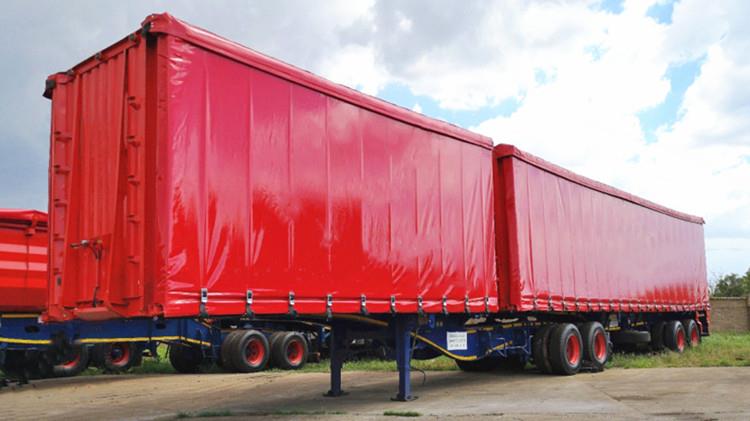

Interlink Superlink Curtain Side Trailers for Sale
Payload: 60, 000kg
Side: made of reinforced PVC curtains
Axles: 4 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
