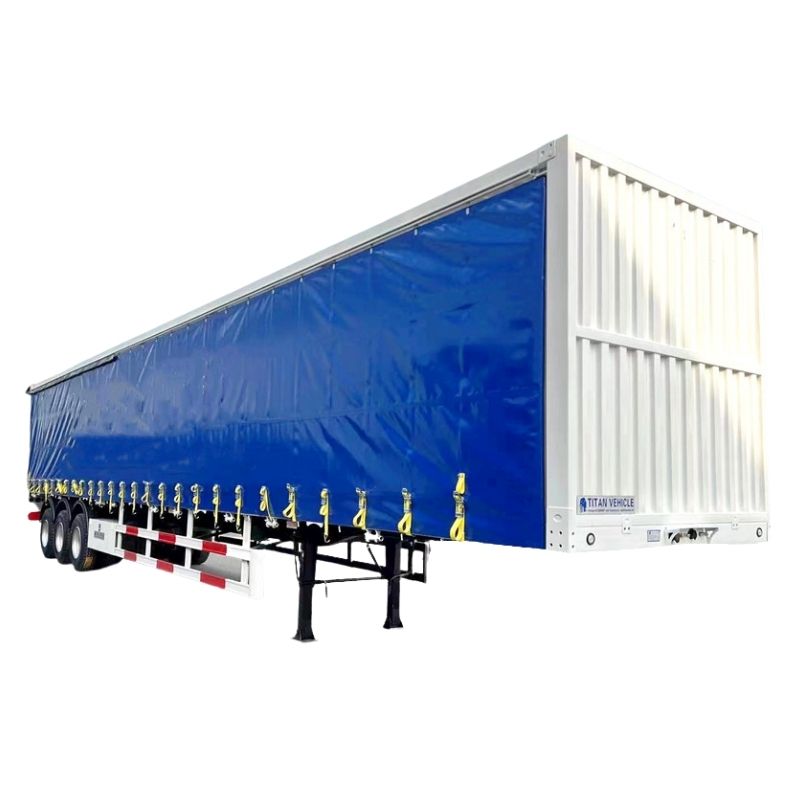

The curtained sides and rear door of trailer curtain provide cargo security and weather protection.
The flexible, strong curtained sides and the rear door design ensure that the full width and length of the lorry trailer curtains can support loads equally well, maximizing payload capacity.
Full rear and side access to cargo and flatbed systems permit fast loading and unloading, without advance first-in and last-out load planning. This truck trailer side curtains save time and transport costs.
Lorry Trailer Curtain | Truck Trailer Side Curtains
Lorry Trailer Curtain | Truck Trailer Side Curtains
Lorry Trailer Curtain | Truck Trailer Side Curtains
Overall dimension: 12500x2500x4380mm
Payload: 60, 000kg
Side: made of reinforced PVC curtains
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
