The curtain side trailer is designed to provide convenience for loading and unloading operations. It features a series of slide-in curtains that can be drawn back to expose the entire length of the curtain trailers for sale in Russia for efficient loading and unloading of goods from the sides.
The curtains are made of durable and weather-resistant materials to protect the cargo from external elements during transportation.

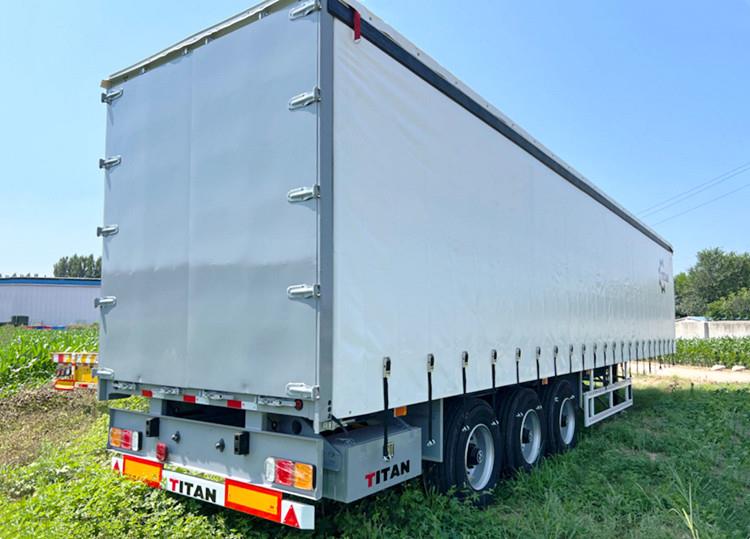

Tri Axle Curtain Side Trailer for Sale Near Me in Russia

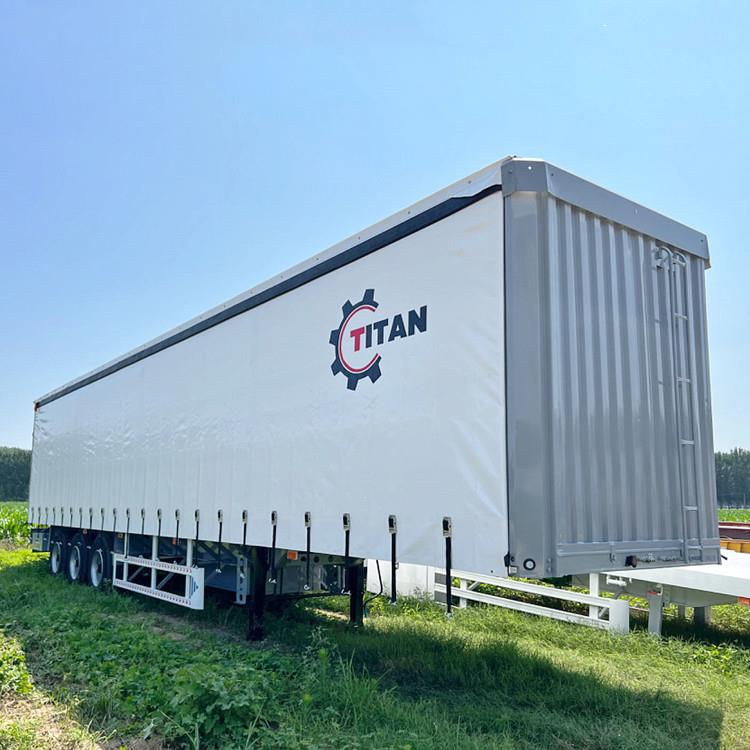

Tri Axle Curtain Side Trailer for Sale Near Me in Russia

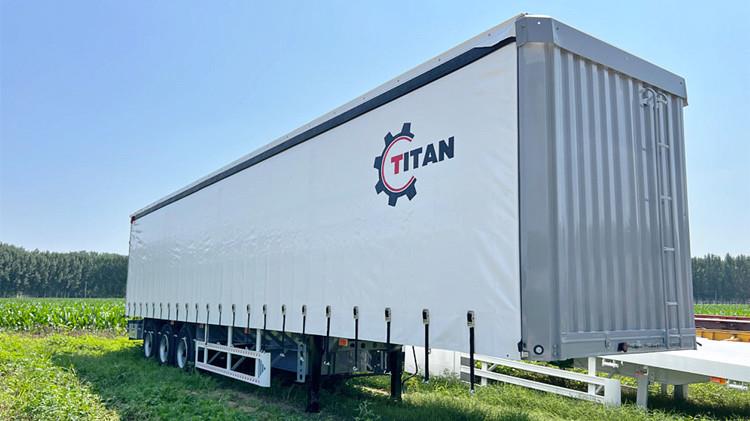

Tri Axle Curtain Side Trailer for Sale Near Me in Russia
Tri Axle Curtain Side Trailer for Sale Near Me in Russia
Tri Axle Curtain Side Trailer for Sale Near Me in Russia
Overall dimension: 12500x2500x4380mm
Payload: 60, 000kg
Side: made of reinforced PVC curtains
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
