Customized curtainsider for sale is built for maximizing productivity, saving companies both time and money.
With 3 axle curtainsider for sale, you get the flexibility of a flatbed when it comes to easy and quick loading and unloading from the sides and back of the 40ft curtainsider trailer for sale, yet you're also able to protect your cargo as you would in a van or box trailer. Man hours are also saved, as delays for dock access are gone because of the capability of loading and off-loading anywhere and at any time.

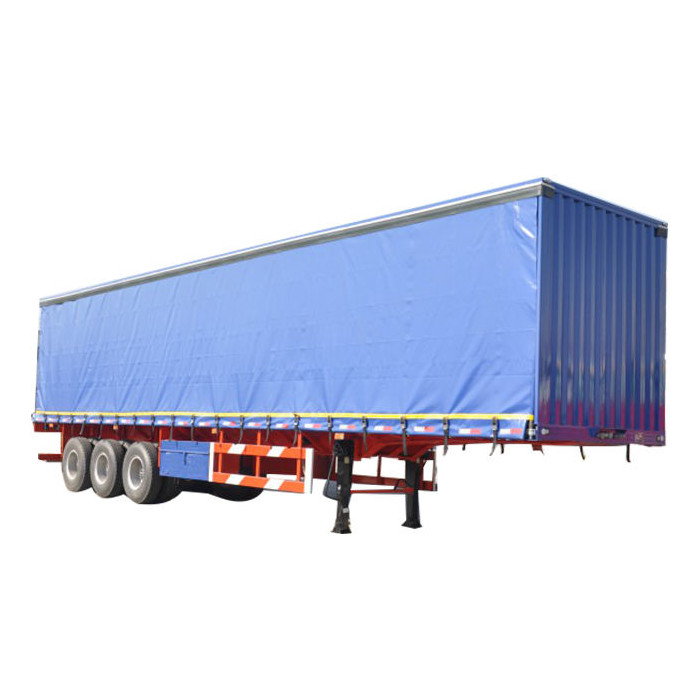

Customized Curtainsider | 3 Axle 40ft Curtainsider Trailer for Sale
Customized Curtainsider | 3 Axle 40ft Curtainsider Trailer for Sale
Overall dimension: 12500x2500x4000mm
Payload: 40, 000kg
Side: made of reinforced PVC curtains
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
We've often been asked, what type of cargo can be hauled in 3 axle curtainsider for sale? The short answer is that you can haul just about anything. While used extensively for transporting such cargoes as lumber, machinery, pipe, steel and iron (items commonly carried on flatbed trailers) the enclosed environment provided by the curtainsides also makes it possible to haul fruits, vegetables and other foodstuffs, which is commonly done on the west coast. Protection from wind damage (which can cause dehydration) and from rain damage makes the use of a 40ft curtainsider trailer appropriate for most goods.
As with flatbeds, the load you're hauling on your curtainsider trailer can be safely secured to the trailer deck. The curtains themselves are then closed and secured. This will prevent the load from shifting while it's being driven down the road.
A big advantage of using curtainsider for sale will become immediately evident if you have a customer that requires rear dock loading at one facility but needs side unloading at another. The only efficient way to handle this type of situation is to use customized curtainsider.
