With 26 ton curtainsider for sale, you get the flexibility of a flatbed when it comes to easy and quick loading and unloading from the sides and back of the 26 tonne curtainsider, yet you're also able to protect your cargo as you would in a van or box trailer.
Curtainsider for sale is consisting of durable yet flexible PVC-coated vinyl side curtains which can be retracted from either the front or rear of the 3 axle curtainsider, and van-style swinging rear doors, a curtainside totally encloses the load for weatherproof protection and security.
With 26 ton curtainsider for sale, you get the flexibility of a flatbed when it comes to easy and quick loading and unloading from the sides and back of the 26 tonne curtainsider, yet you're also able to protect your cargo as you would in a van or box trailer.
Curtainsider for Sale | 3 Axle 26 Ton/Tonne Curtainsider for Sale
Curtainsider for Sale | 3 Axle 26 Ton/Tonne Curtainsider for Sale
Overall dimension: 12500x2500x4000mm
Payload: 40, 000kg
Side: made of reinforced PVC curtains
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
A 3 axle curtainside for sale has canvas curtains on rails down the side that can be drawn back to allow easy loading and unloading by a forklift from either side. Behind the curtains is a flat deck truck. The roof is held up by side rails and there is a rigid rear (which can also contain doors) and a rigid headboard.

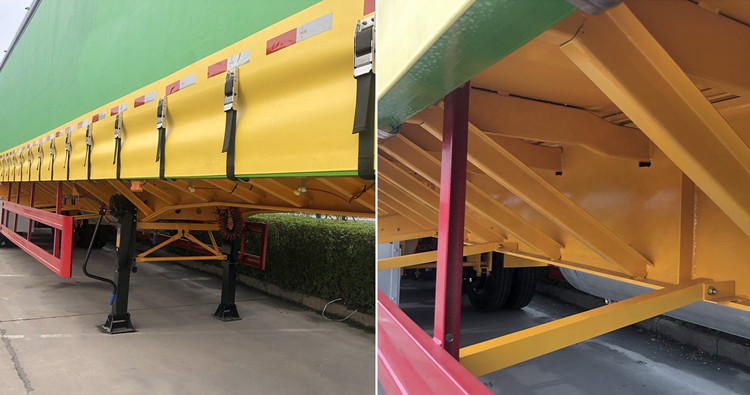

The curtain is held tight with buckles. The driver can undo the whole curtain or simply a section of the front or back. The buckles pull the curtain tight downwards to stop it flapping in the wind.
