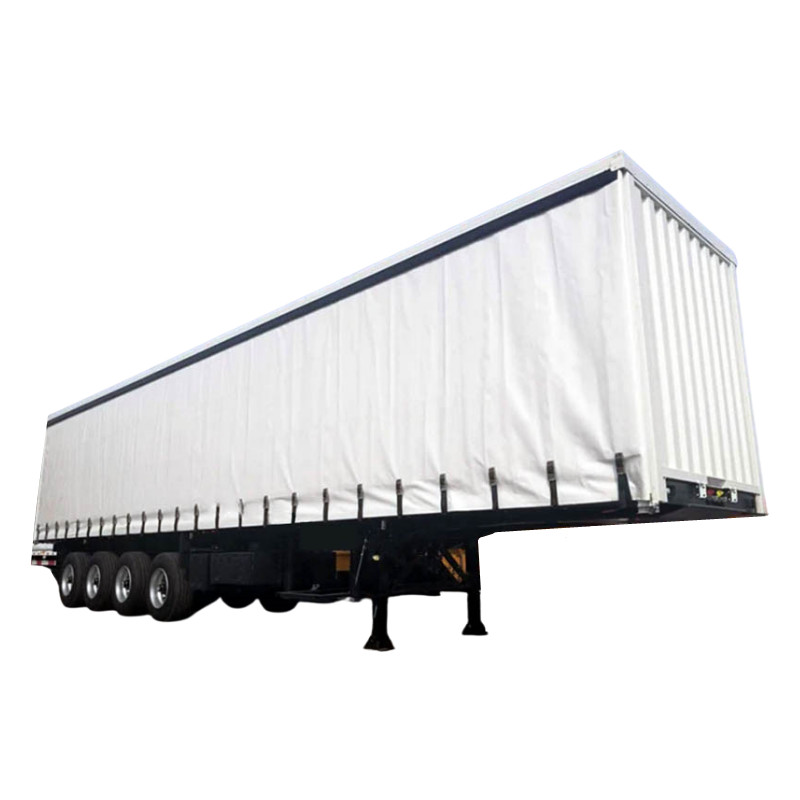

This 45ft curtainsider trailer for sale can be controlled and moved up, which makes it easier to load and unload cargo.
Curtainsider for sale is widely used for the hauling of the goods from expensive automobiles to raw lumber, to delicate manufacturing components.
Advantages:
1. Simplifies the process and makes the cover detachable.
2. Truck curtainsider is very convenient for loading and unloading of goods.
3. With the relatively low price of the cover, the cover can reduce the production cost and strengthen the competitiveness of the market.
4. 45ft curtainsider trailer for sale can be rainproof, dustproof, heat-proof, safe and environmentally friendly.
Overall dimension: 13500x2500x4380mm
Payload: 60, 000kg
Side: made of reinforced PVC curtains
Axles: 4 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
