Tri axle trailer curtainsider is integral frame welded by high quality steels such as channel steel, is covered by various materials such as iron sheet or PVC tarpaulin.
Integral vehicle has strong strength, small weight, rational structure and beautiful appearance. All parts use foreign and domestic famous brands, are purchased, inspected and used strictly according to the requirements of quality system documents and ensure good performance of whole curtainside trucks for sale.

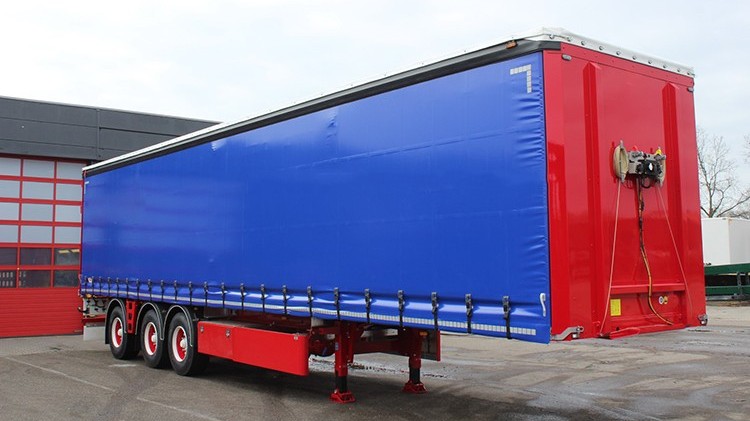

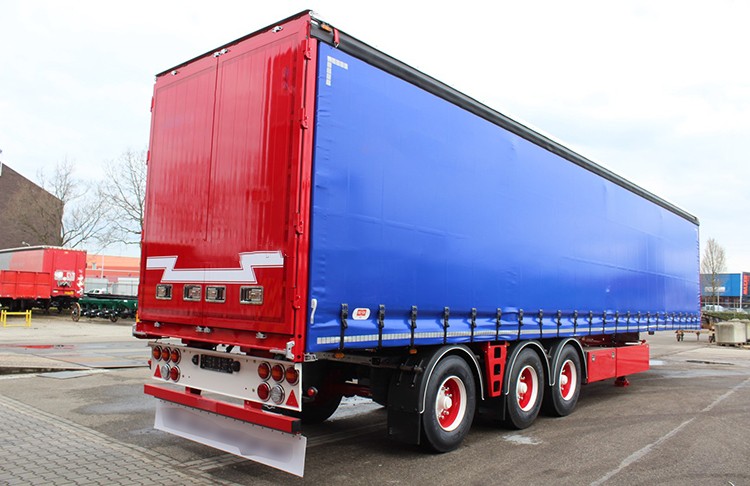

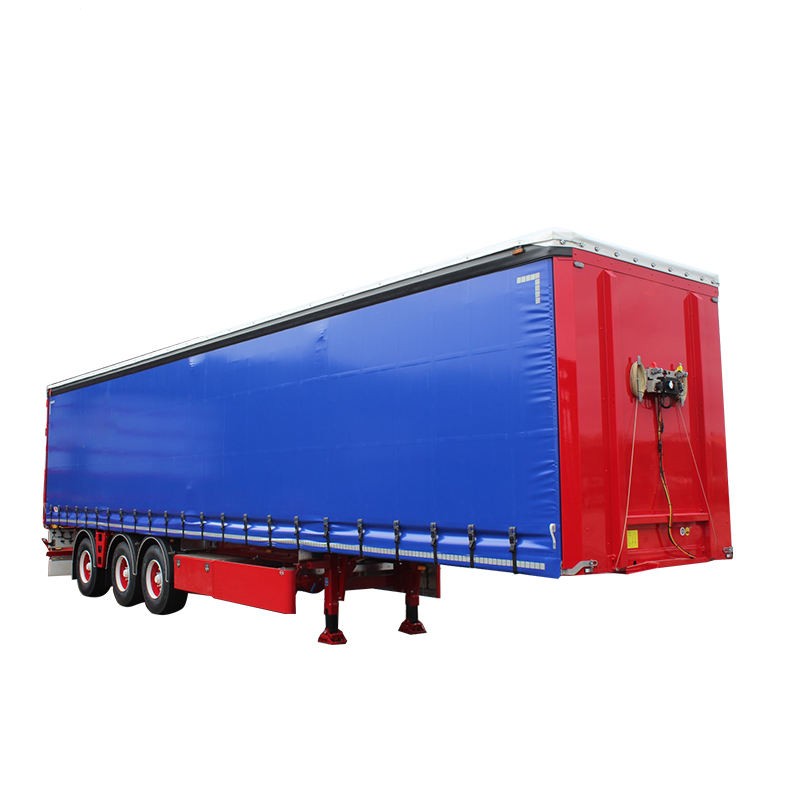

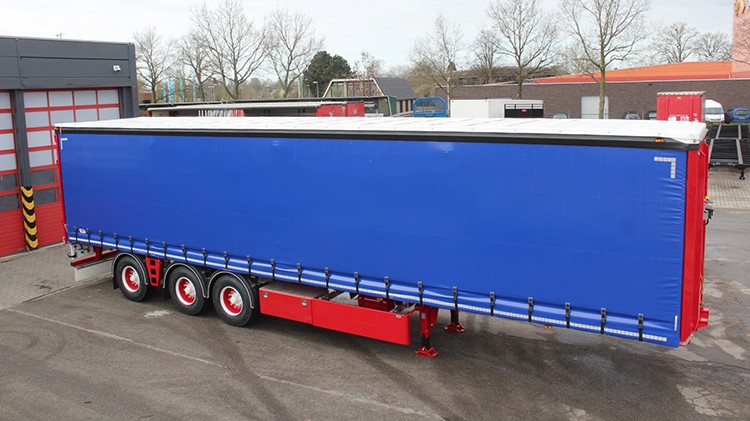

Tri Axle Trailer Curtainsider | Curtainsider Trucks for Sale
Tri Axle Trailer Curtainsider | Curtainsider Trucks for Sale
Overall dimension: 12500x2500x4380mm
Payload: 40, 000kg
Side: made of reinforced PVC curtains
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
