With soft side semi trailer, you get the flexibility of a flatbed when it comes to easy and quick loading and unloading from the sides and back of the curtain semi trailer, yet you're also able to protect your cargo as you would in a van or box trailer.
Curtain side semi trailer is consisting of durable yet flexible PVC-coated vinyl side curtains which can be retracted from either the front or rear of the curtain side semi trailer for sale, and van-style swinging rear doors, a curtainside totally encloses the load for weatherproof protection and security.
With soft side semi trailer, you get the flexibility of a flatbed when it comes to easy and quick loading and unloading from the sides and back of the curtain semi trailer, yet you're also able to protect your cargo as you would in a van or box trailer.

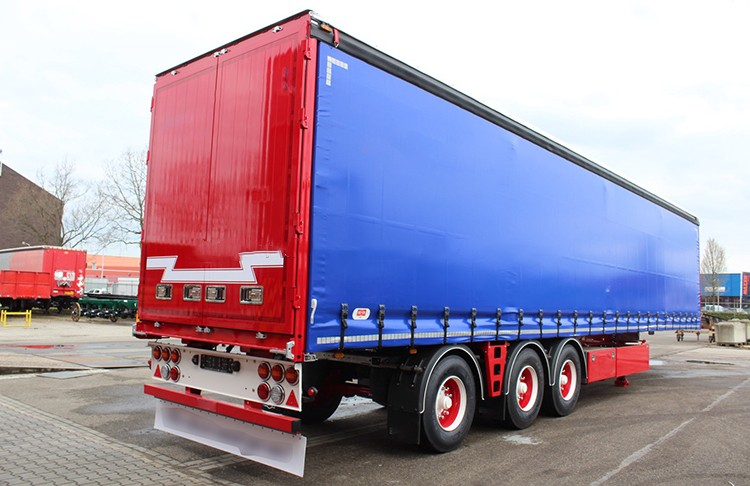

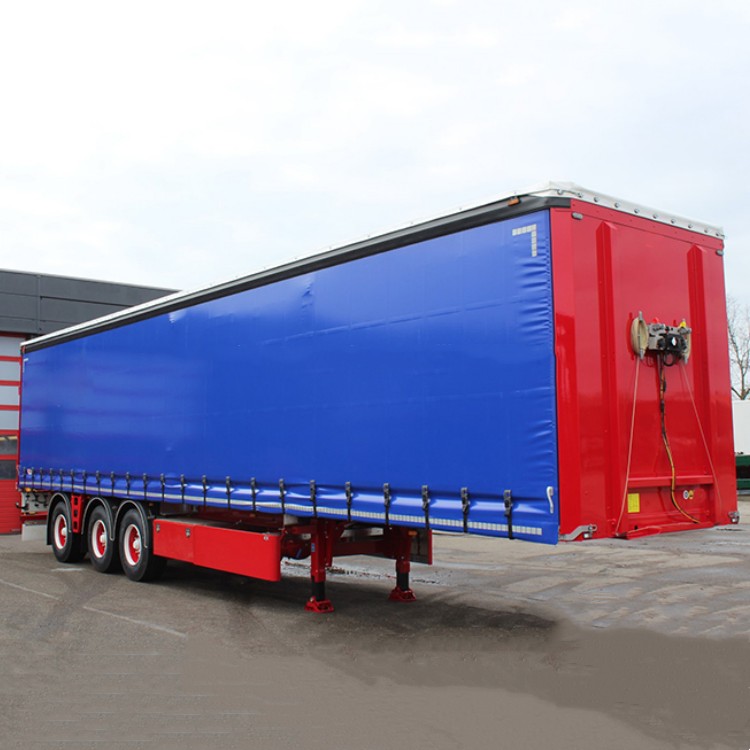

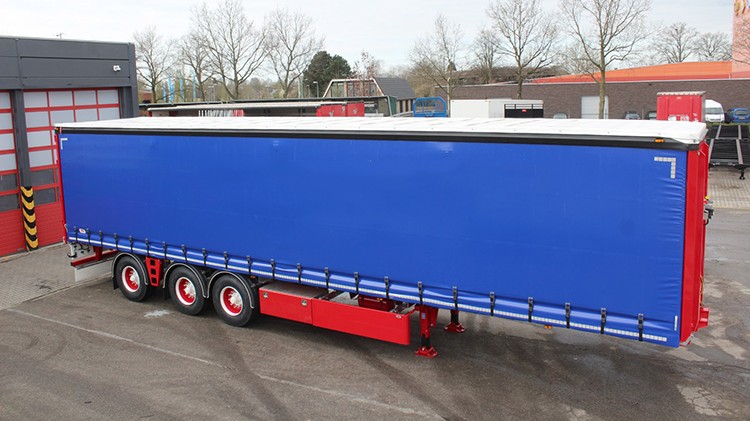

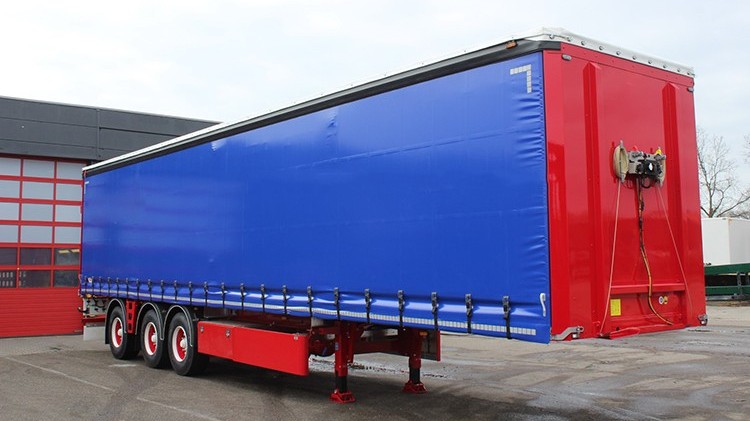

Soft Curtain Side Semi Trailer for Sale
Soft Curtain Side Semi Trailer for Sale
Overall dimension: 12500x2500x4000mm
Payload: 40, 000kg
Side: made of reinforced PVC curtains
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
We've often been asked, what type of cargo can be hauled in soft side semi trailer? The short answer is that you can haul just about anything. While used extensively for transporting such cargoes as lumber, machinery, pipe, steel and iron (items commonly carried on flatbed trailers) the enclosed environment provided by the curtain semi trailer also makes it possible to haul fruits, vegetables and other foodstuffs, which is commonly done on the west coast. Protection from wind damage (which can cause dehydration) and from rain damage makes the use of a curtain side semi trailer for sale appropriate for most goods.
As with flatbeds, the load you're hauling on your curtain side semi trailer can be safely secured to the trailer deck. The curtains themselves are then closed and secured. This will prevent the load from shifting while it's being driven down the road.
A big advantage of using curtain semi trailer will become immediately evident if you have a customer that requires rear dock loading at one facility but needs side unloading at another. The only efficient way to handle this type of situation is to use curtain side semi trailer.
